- Can be used to transfer clean water or other liquids similar to water in physical and chemical properties
- Suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.

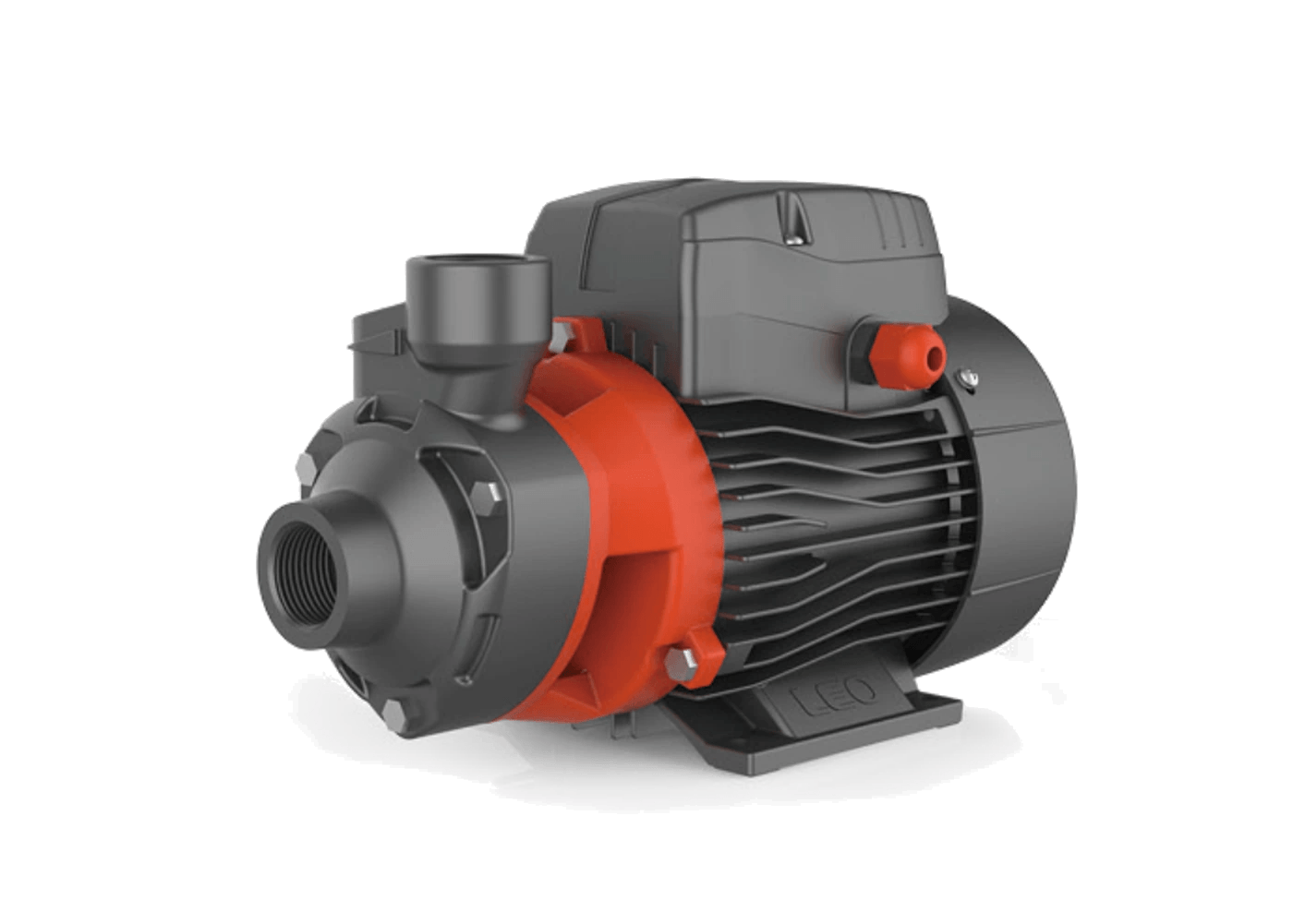

SPm
Submersible Peripheral Pump
2.0 m³/h / 33.4 l/minMax. flow
40 mMax. head
0.37 kW / 0.5 HPPower range
Applications and features
+40℃Max. fluid temperature
5 mMax. immersion depth
6.5 – 8.5Liquid PH value
0.1%Maximum sand content
0.2 mmMaximum solid diameter
Product identification
Pump
- Special anti-rust treatment for cast iron pump body
Motor
- Motor with copper winding
- Insulation class: F
- Enclosures class: IPX8
Identification code
SPm37A
- S
- Submersible Type
- P
- Peripheral Pump
- m
- Single Phase Motor (Omitted for three-phase motor)
- 37
- Power (X10 W)
- A
- Automatic Operation With Float Switch
Swipe horizontally to compare model, phase, power and all flow/head values.
Dimensions and connections
No dimensions drawings are available for this series.
Construction and materials
No construction drawings are available for this series.
| Part no. | Part | Material |
|---|---|---|
| 2 | Casing cover | HT200 |
| 3 | Impeller | HPB59-1 |
| 5 | Pump body | HT200 |
| 10 | Top cover | HT200 |
| 12 | Upper bearing shuck | HT200 |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
Discuss your pump requirements
For product selection, availability or project support, contact our team through the official contact channel.
