Peripheral Pump
SPm
Can be used to transfer clean water or other liquids similar to water in physical and chemical properties
5.4 m³/hMax. flow
100 mMax. head
0.37 kWPower
Applications and features
Max. 60 °CLiquid temperature
Max. 5 mimmersion depth
6.5 - 8.5Liquid pH value
Max. 0.1%sand content
Max. 0.2 mmsolid diameter
F / IPX8Insulation / enclosure
Product identification
Pump
- Special anti-rust treatment for cast iron pump body
Motor
- Motor with copper winding
Identification code
SPm37A
- S
- Submersible Type
- P
- Peripheral Pump
- m
- Single Phase Motor (Omitted for three-phase motor)
- 37
- Power (X10 W)
- A
- Automatic Operation With Float Switch
Swipe horizontally to compare model, phase, power and all flow/head values.

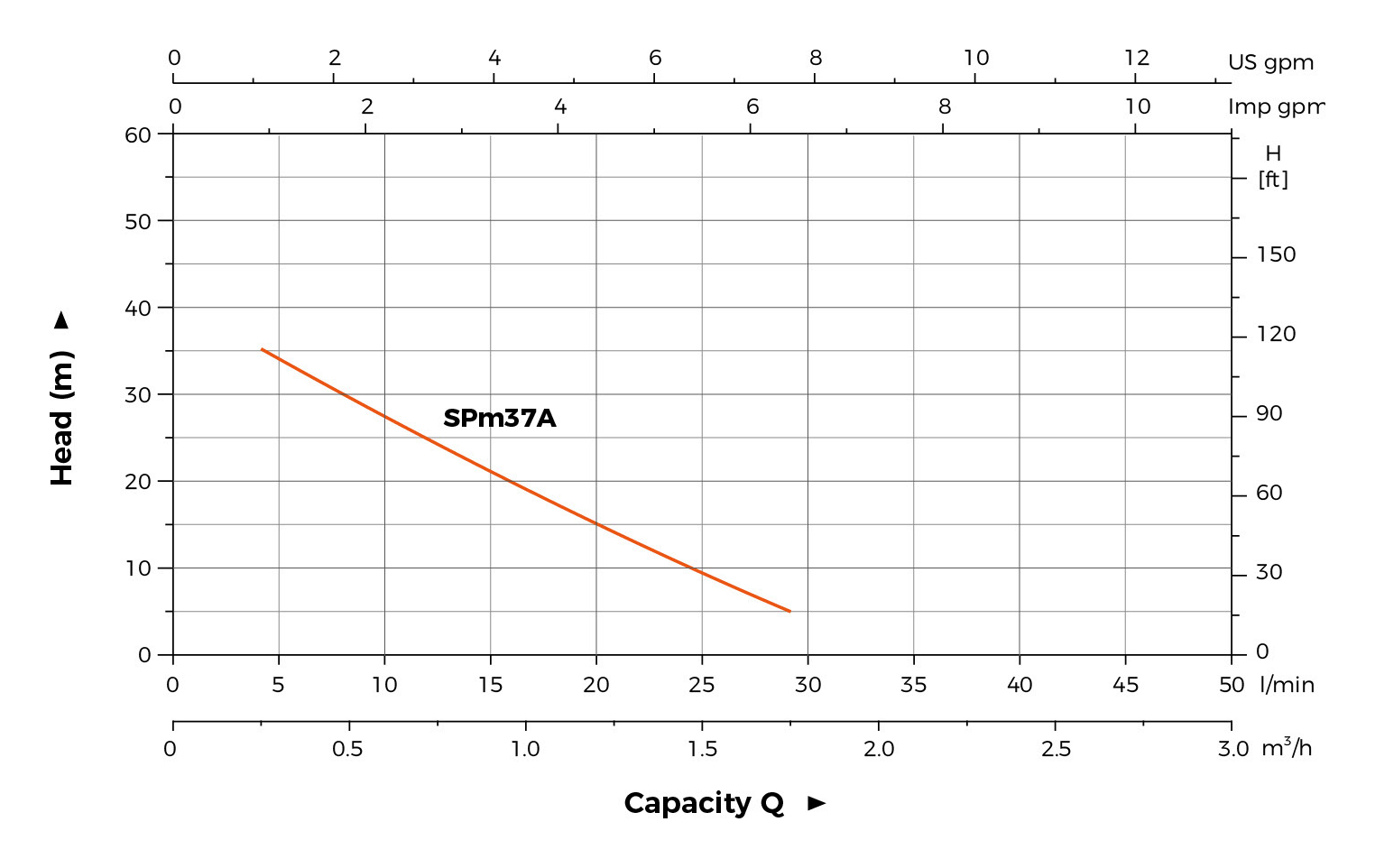

Hydraulic performance curves

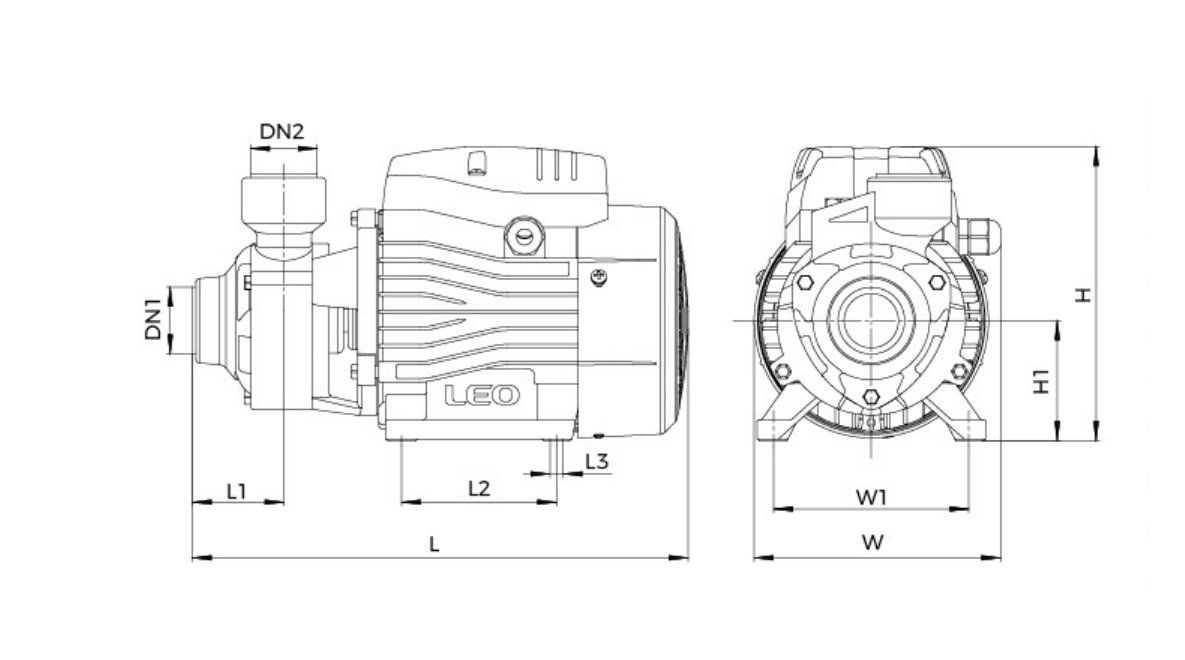

Dimensions and connections

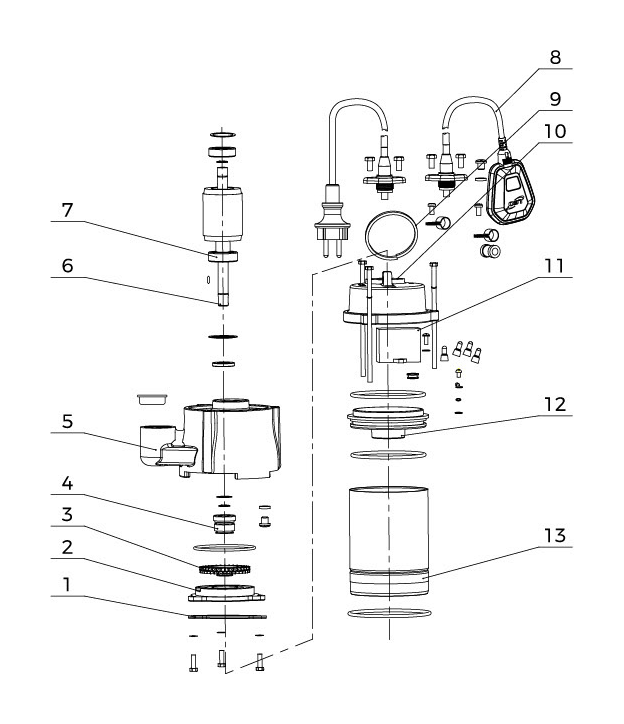

Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Filter | Not specified |
| 2 | Casing cover | HT200 |
| 3 | Impeller | HPB59-1 |
| 4 | Mechanical seal | Not specified |
| 5 | Pump body | HT200 |
| 6 | Rotor | Not specified |
| 7 | Ball bearing | Not specified |
| 8 | Float switch | Not specified |
| 9 | Handle ring | Not specified |
| 10 | Top cover | HT200 |
| 11 | Capacitance | - |
| 12 | Upper bearing shuck | HT200 |
| 13 | Stator | Not specified |
Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
