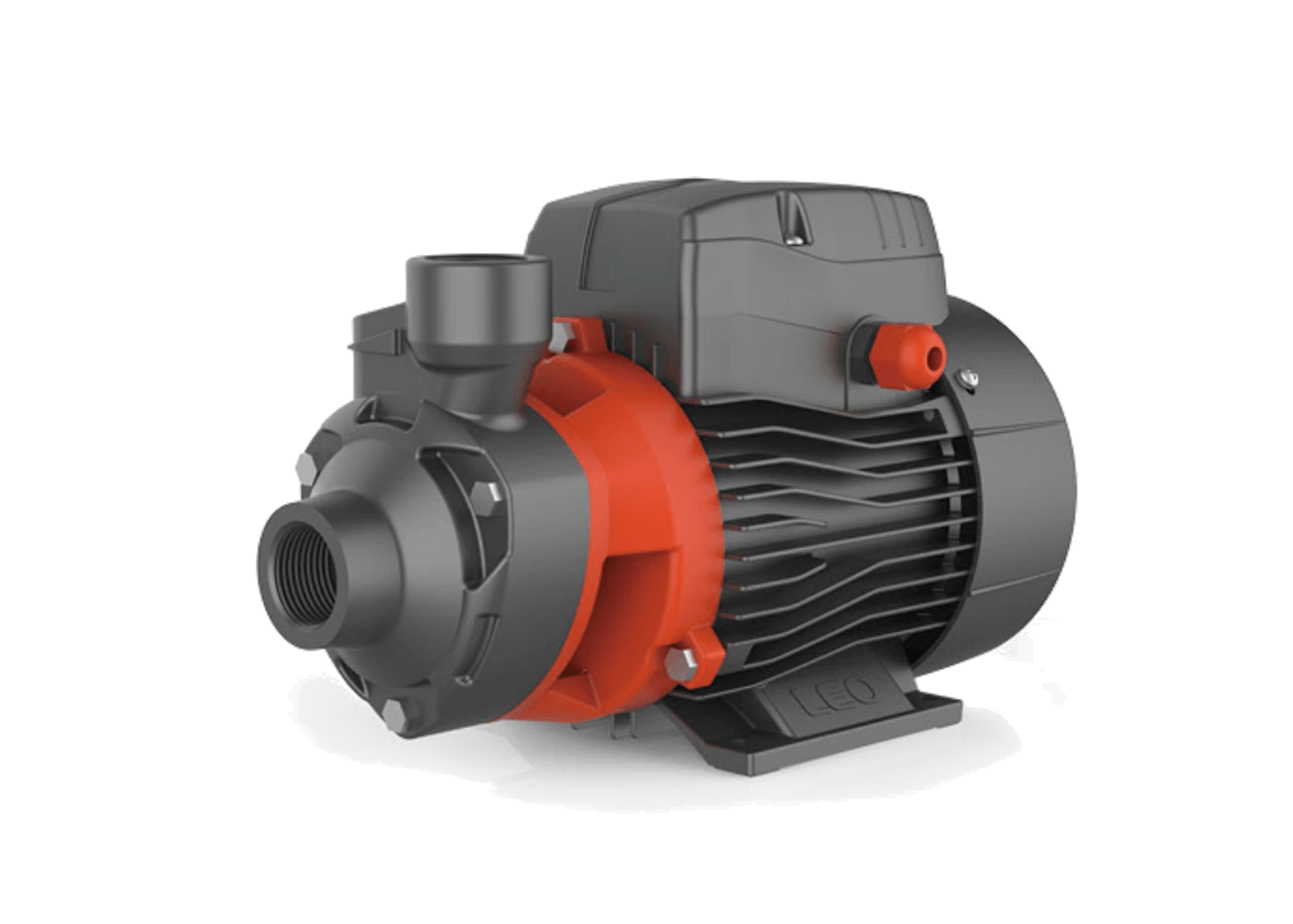

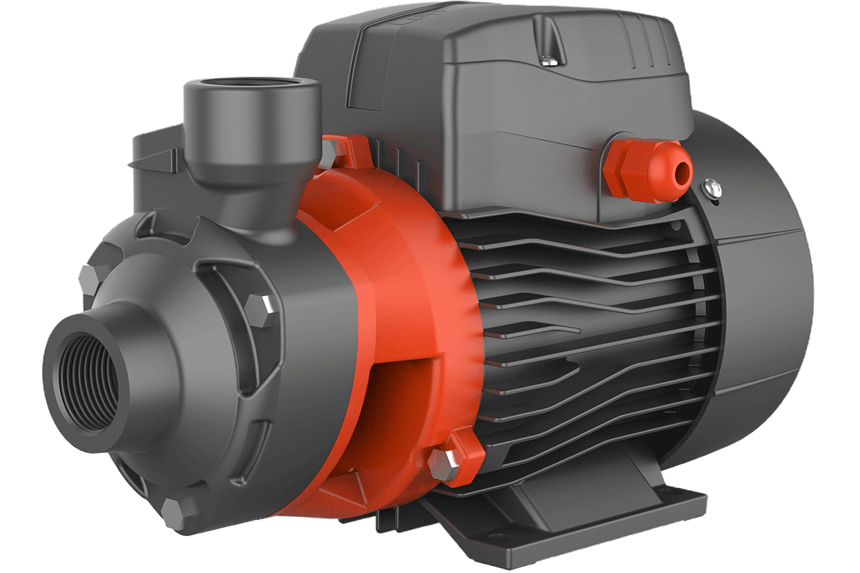

Peripheral Pump
APm
Peripheral pumps for transferring clean water or other liquids similar to water in physical and chemical properties.
5.4 m³/hMax. flow
100 mMax. head
0.3-2.2 kWPower range
Applications and features
+60°CMax. liquid temperature
8 mMax. suction
+50°CMax. ambient temperature
Product identification
Pump
- Special anti-rust treatment for cast iron pump body and support
- Brass impeller
- AISI 304 shaft
Motor
- Low noise & Long life bearing
- Motor with copper winding
- Built-in thermal protector for single phase motor
- IE 2 motor (AP110, AP150)
- Insulation class: F
- Enclosure class: IPX4
Identification code
APm37
- A
- LEO Product Style
- P
- Peripheral Pump
- m
- Single Phase Motor (Omitted for three-phase motor)
- 37
- Power (×10 W)
Swipe horizontally to compare model, phase, power and all flow/head values.

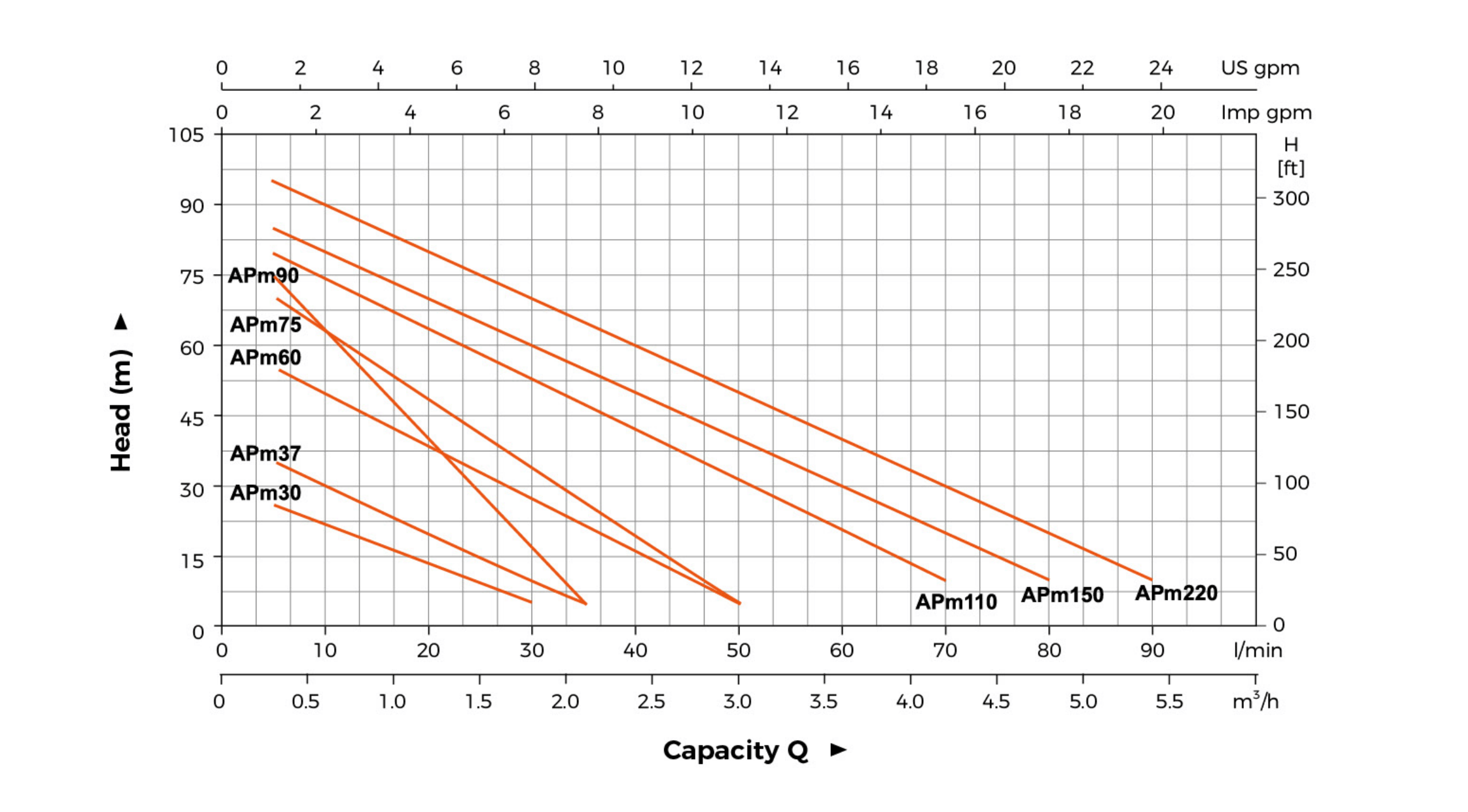

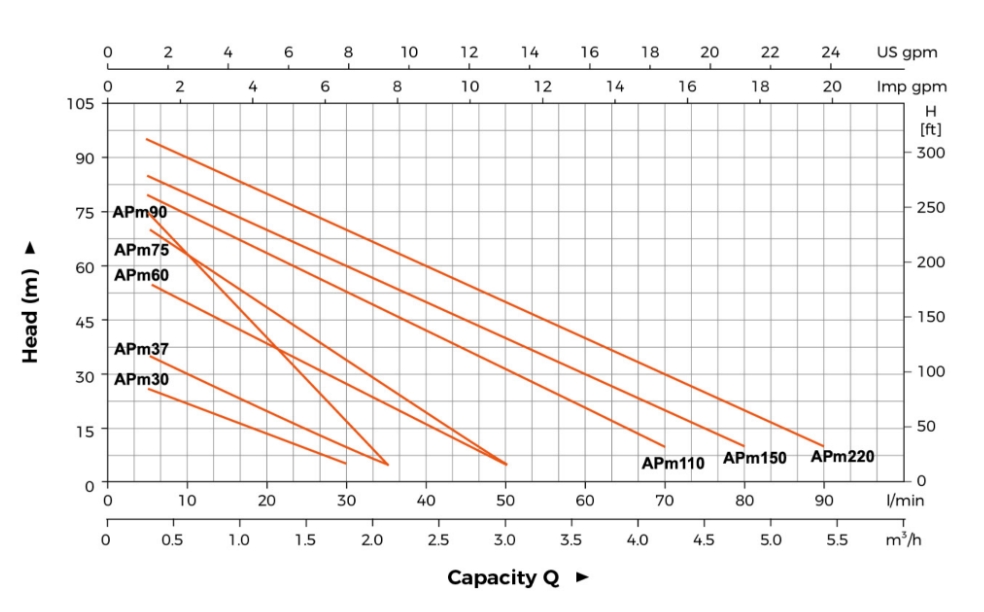

Hydraulic performance curves

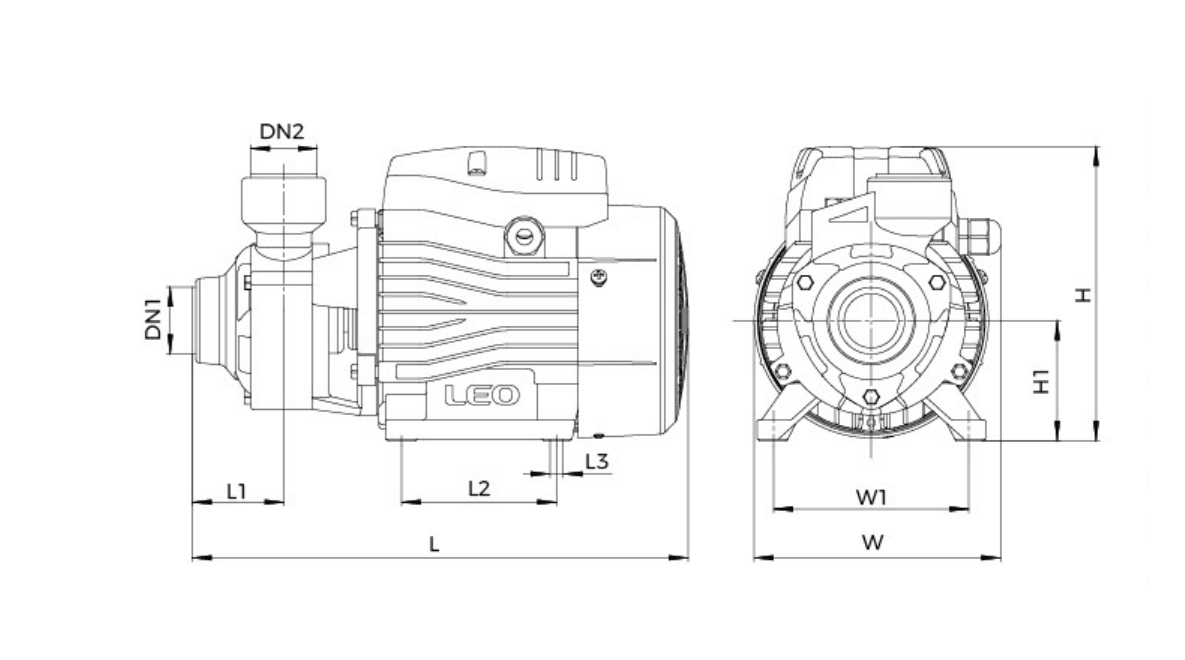

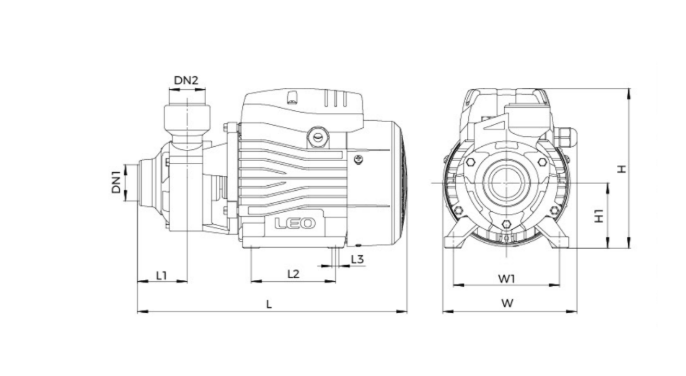

Dimensions and connections

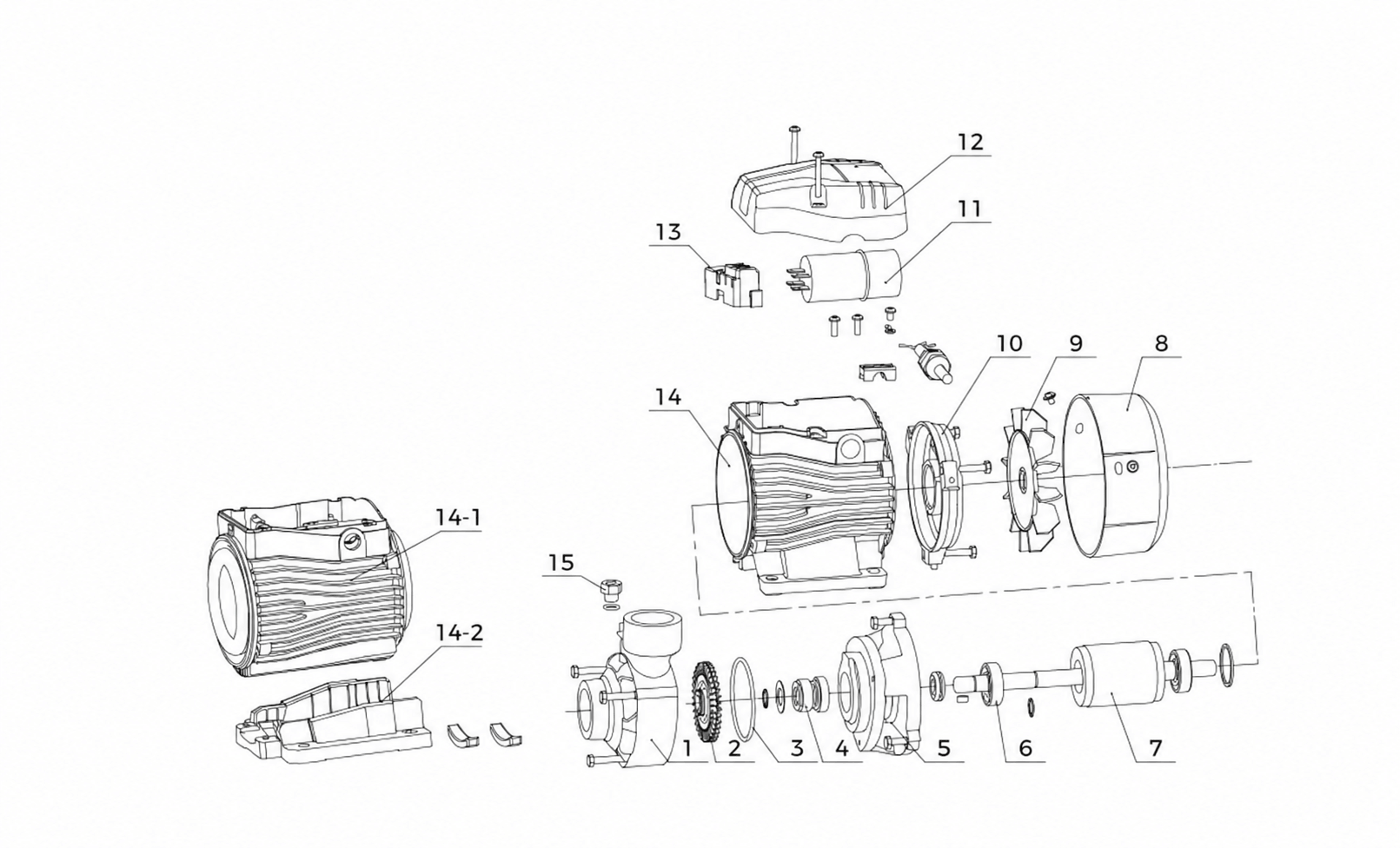

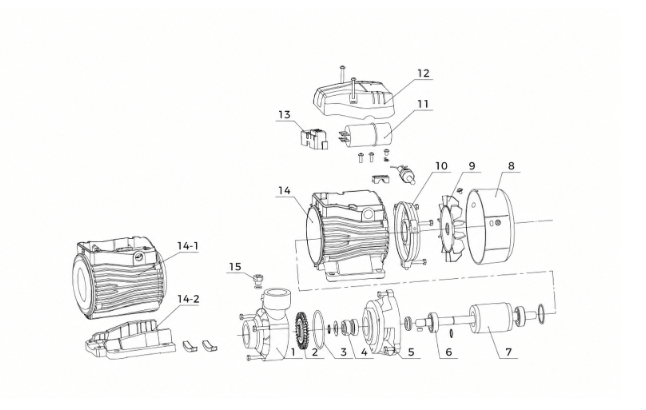

Construction and materials
| Part no. | Part | Material |
|---|---|---|
| 1 | Pump body | HT200 |
| 2 | Impeller | HPb59-1 |
| 3 | O-ring | NBR |
| 4 | Mechanical seal | - |
| 5 | Pump support | HT200 |
| 6 | Bearing | - |
| 7 | Rotor | - |
| 8 | Fan cover | PP |
| 9 | Fan | PP-GF10 |
| 10 | End plate | ADC12 |
| 11 | Capacitor | - |
| 12 | Cover box | PP-GF20 |
| 13 | Wiring base assembly | PC |
| 14 | Stator | - |
| 15 | Filling plug | HPb59-1 |
| 16 | Stator | - |
| 17 | Base plate | PC+ABS |

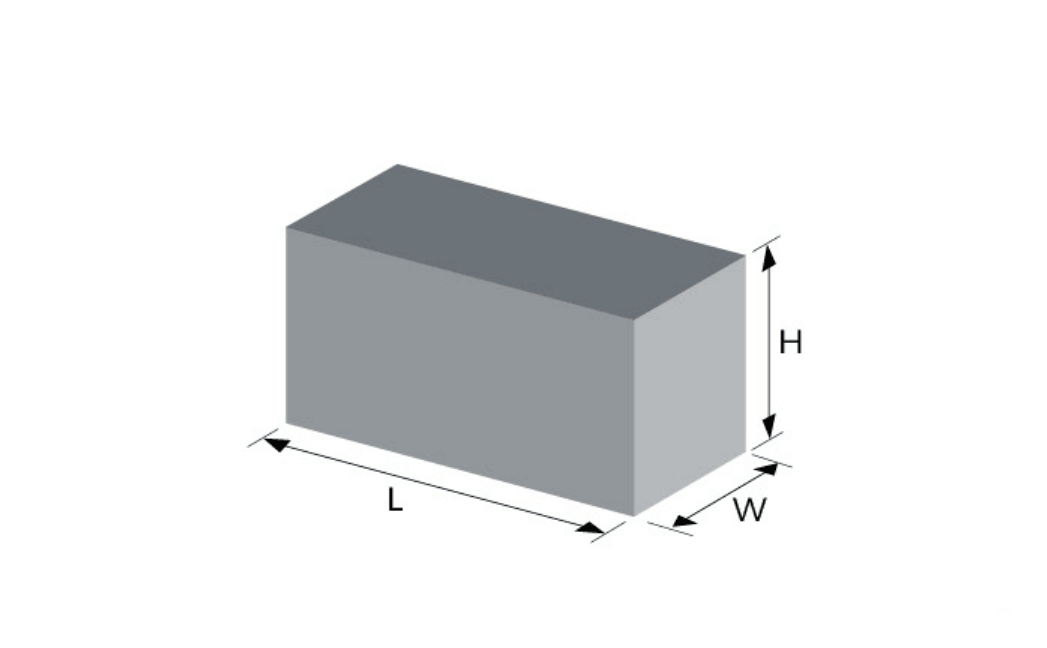

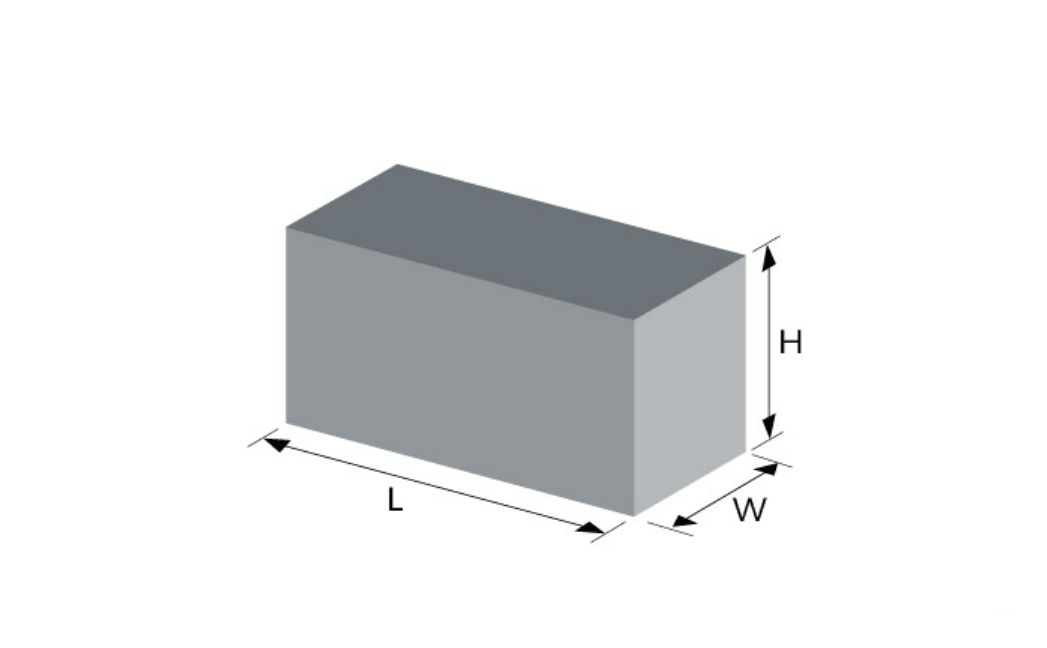

Package dimensions
Swipe horizontally to view all package columns.
| Models | L | W | H | Gross weight | Quantity |
|---|
